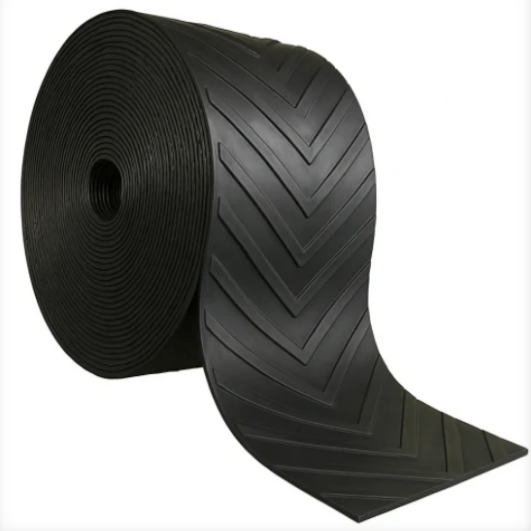

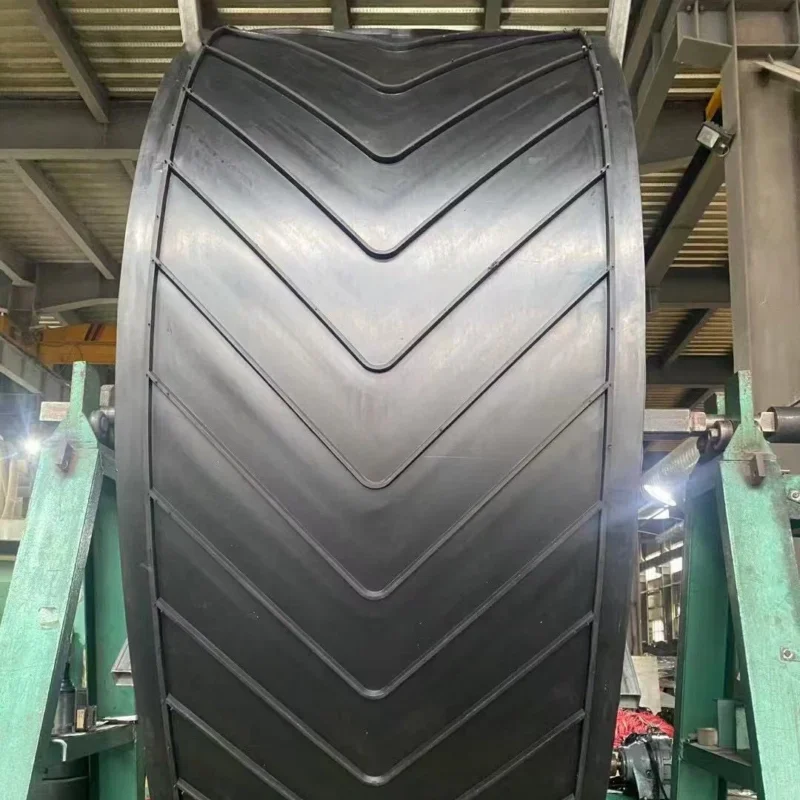

Chevron Conveyor Belt for Steep Inclines

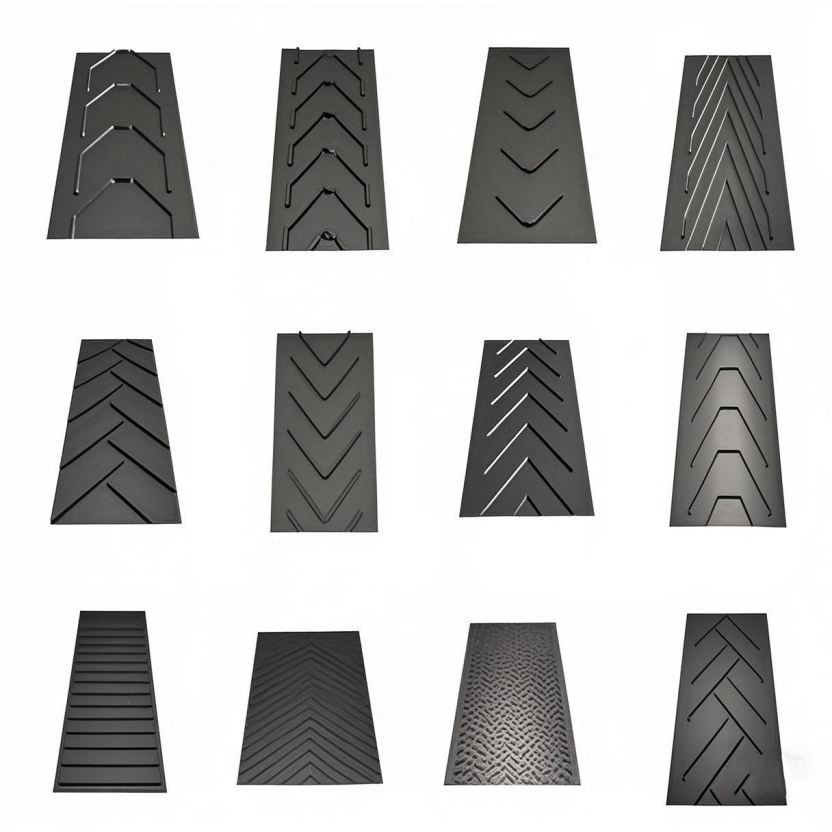

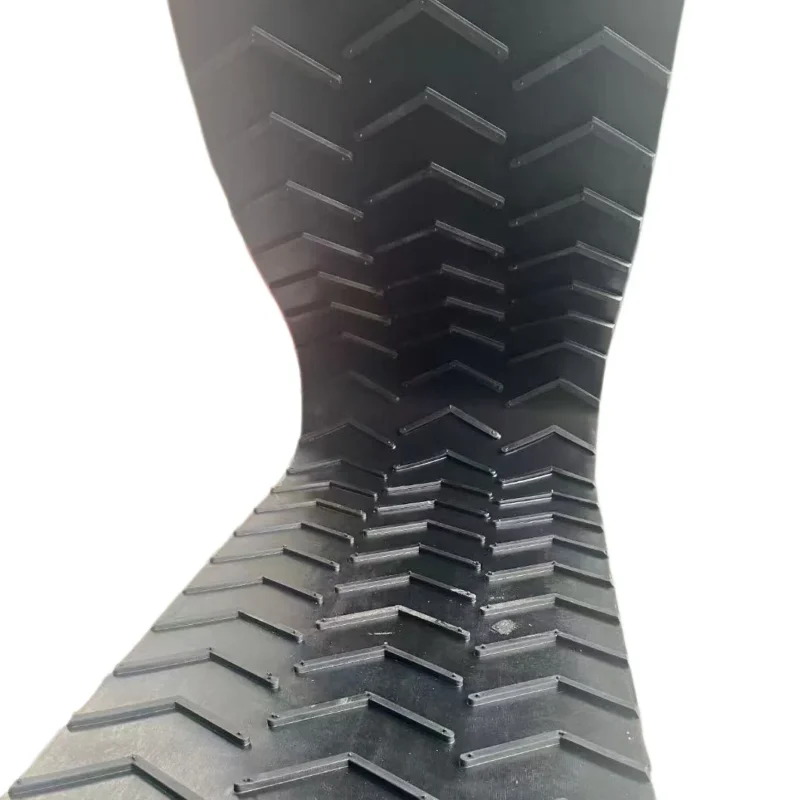

Anti-slip surface patterns,Open V pattern Close V Pattern,Multi-V pattern,Y Pattern U pattern,weatherproof and impact-resistant design.
| Thickness |
1mm-50mm |
|---|---|
| Width |
100mm-2000mm |
| Pattern Height |
5mm-32mm |
| Edge |
Mold or Cut |
| Pattern |
Customize: V, U, Y,etc. |
YOU BELT – Delivering Beyond Borders, Building Trust Worldwide
Streamline Your Global Supply Chain with Speed & Precision
At You Belt Industrial Co.,Ltd, we understand that timely delivery is the backbone of international trade. That’s why we prioritize fast and reliable shipping solutions to meet your deadlines, ensuring your products reach global destinations swiftly and securely.
Why Partner with Us?
✅ Rapid Turnaround: Leverage our optimized logistics network for industry-leading lead times. Whether you need air, sea, rail, or road freight, we deliver on time—every time.
✅ Flexible Shipping Options: Choose from a range of transport modes to balance speed, cost, and cargo requirements. From express air freight for urgent orders to cost-effective ocean shipping for bulk shipments, we’ve got you covered.
✅ Hassle-Free Customs Clearance: Cross-border trade made simple. Our team provides **full documentation support**, including commercial invoices, packing lists, certificates of origin, and any specialized paperwork required by your country. We guide you through customs compliance to avoid delays and ensure seamless border transitions.
Your Success, Our Commitment
With You Belt Industrial Co.,Ltd, global logistics is no longer a challenge—it’s your competitive edge. Let us handle the complexities while you focus on growing your business.
Ready to Ship Smarter?
Contact us today to discuss your project, and experience a partnership built on speed, flexibility, and end-to-end peace of mind.
Chevron Pattern Selection by Incline Angle
| Cleat Pattern | Cleat Height | Max Incline | Best Material | Notes |
|---|---|---|---|---|

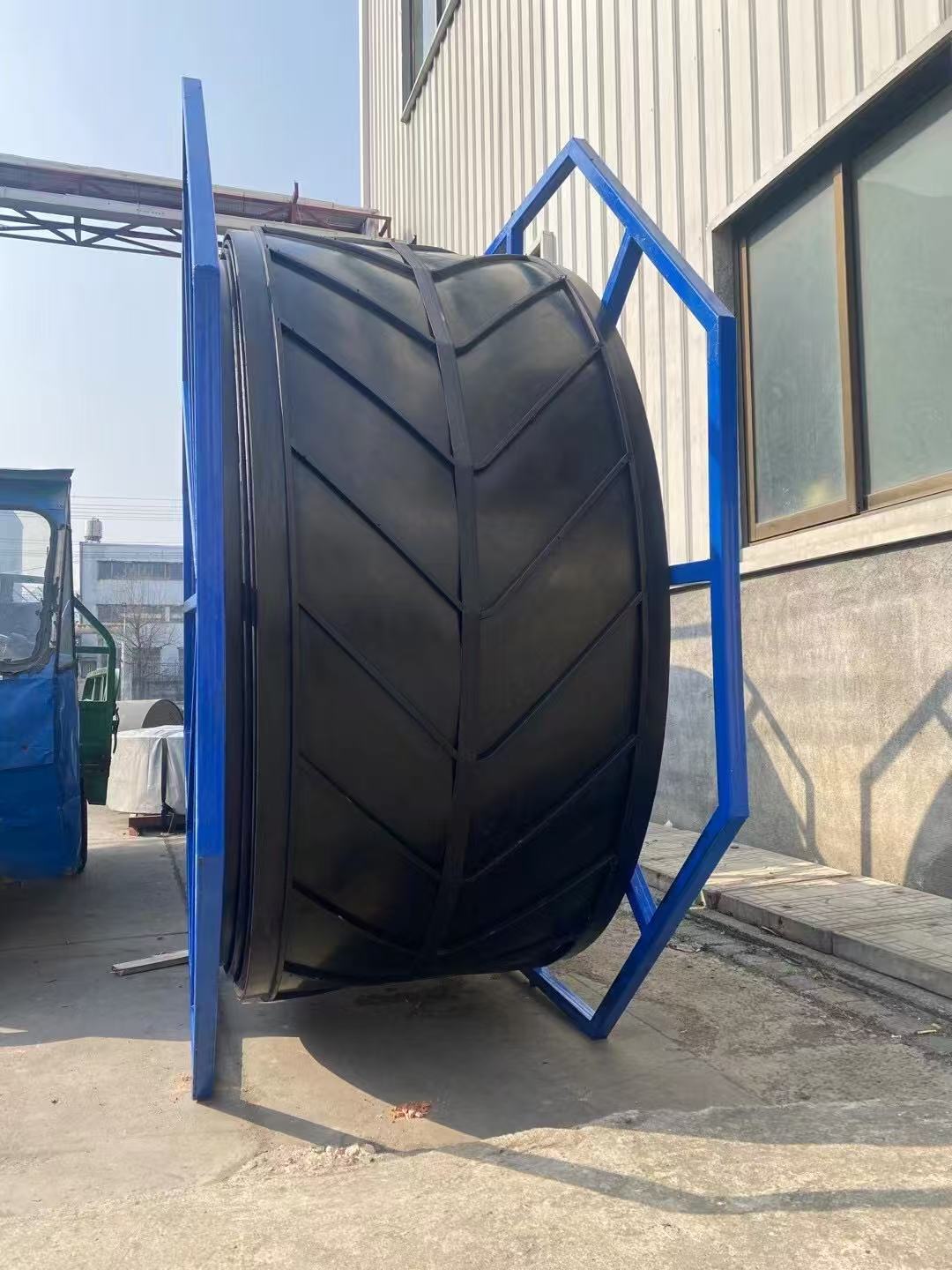

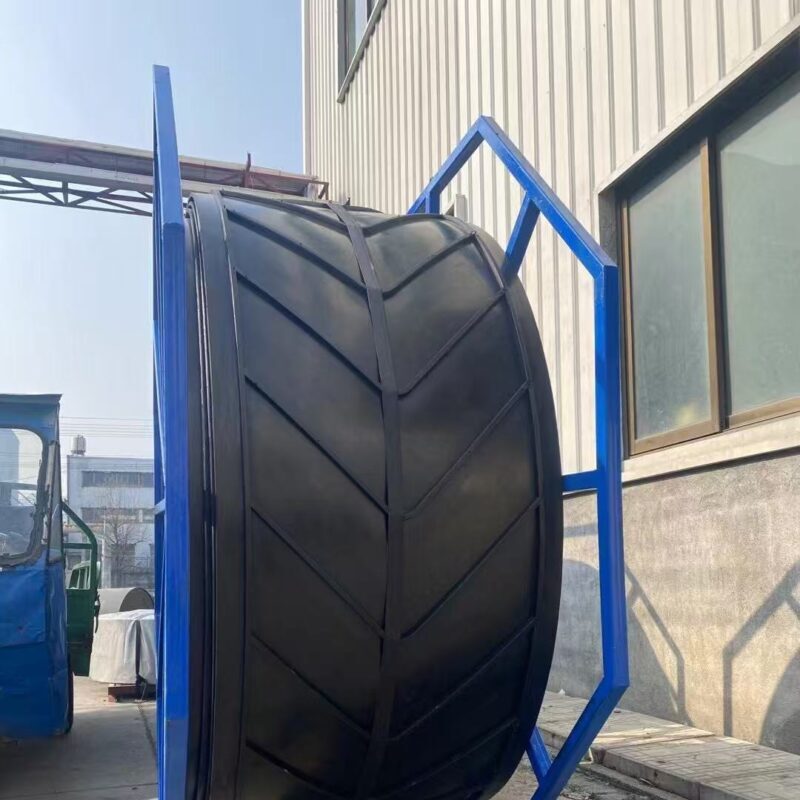

| V (Chevron) | 6-32mm | Up to 40 degrees | Sand, grain, coal | Self-cleaning, symmetrical, reversible |

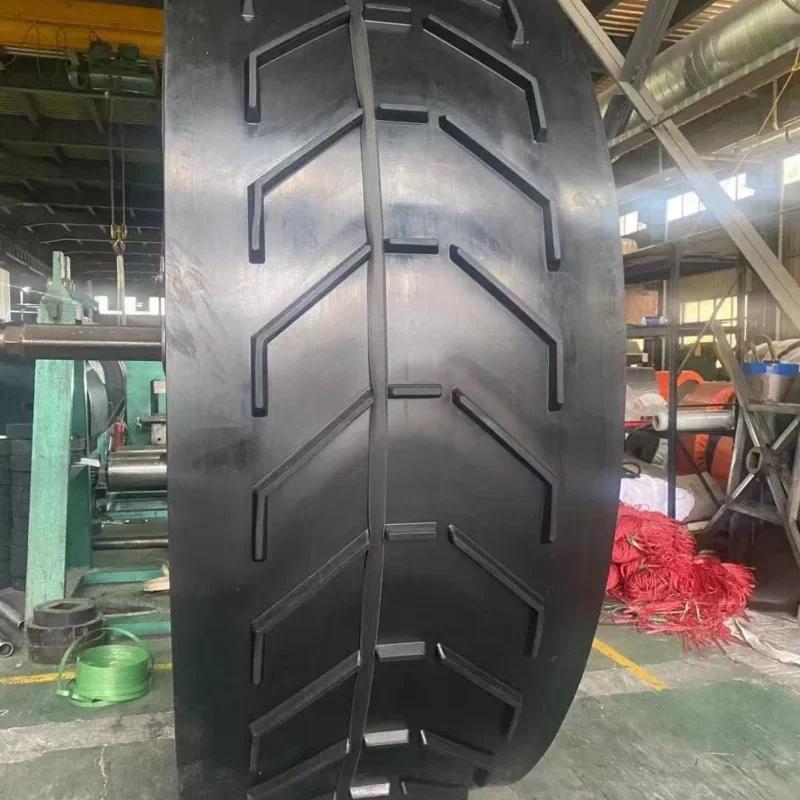

| U Pattern | 6-32mm | Up to 40 degrees | Wet or fine bulk | Stronger grip on wet material |
| Y Pattern | 6-32mm | Up to 40 degrees | Fine powders | Best containment for fines |
| Corrugated Sidewall | 40-120mm | 45 to 90 degrees | Wet sticky bulk | Enclosed box profile, no spillage |
Rule of thumb: cleat height must exceed the material tendency to slide back at the design incline. Asymmetric patterns are single-direction only; V-pattern runs in reverse.
You may also like…
Related products
Oil Resistant Conveyor Belt
Frequently Asked Questions
What angle can a chevron conveyor belt handle?
Chevron belts handle inclines up to 40 degrees depending on cleat height (6-32mm) and material. For angles above 40 degrees, sidewall belts are recommended.
What cleat patterns are available?
V, U and Y patterns. V-pattern suits general bulk materials like sand and grain; U and Y patterns give stronger grip for wet or fine materials.
Can chevron belts run in reverse?
Yes, but only with symmetrical V-pattern cleats. Asymmetric patterns are single-direction.
What is the lead time for custom cleat heights?
Standard heights ship in 7-15 days; custom moulds typically need 25-30 days.
Do you provide custom sizes for this belt?
Yes. Width, length, thickness and surface pattern are customized to order. Send your specification or drawing for a fast quote.
What is the lead time?
Standard items ship in 7-15 days. Custom orders typically need 15-30 days depending on quantity and tooling.
